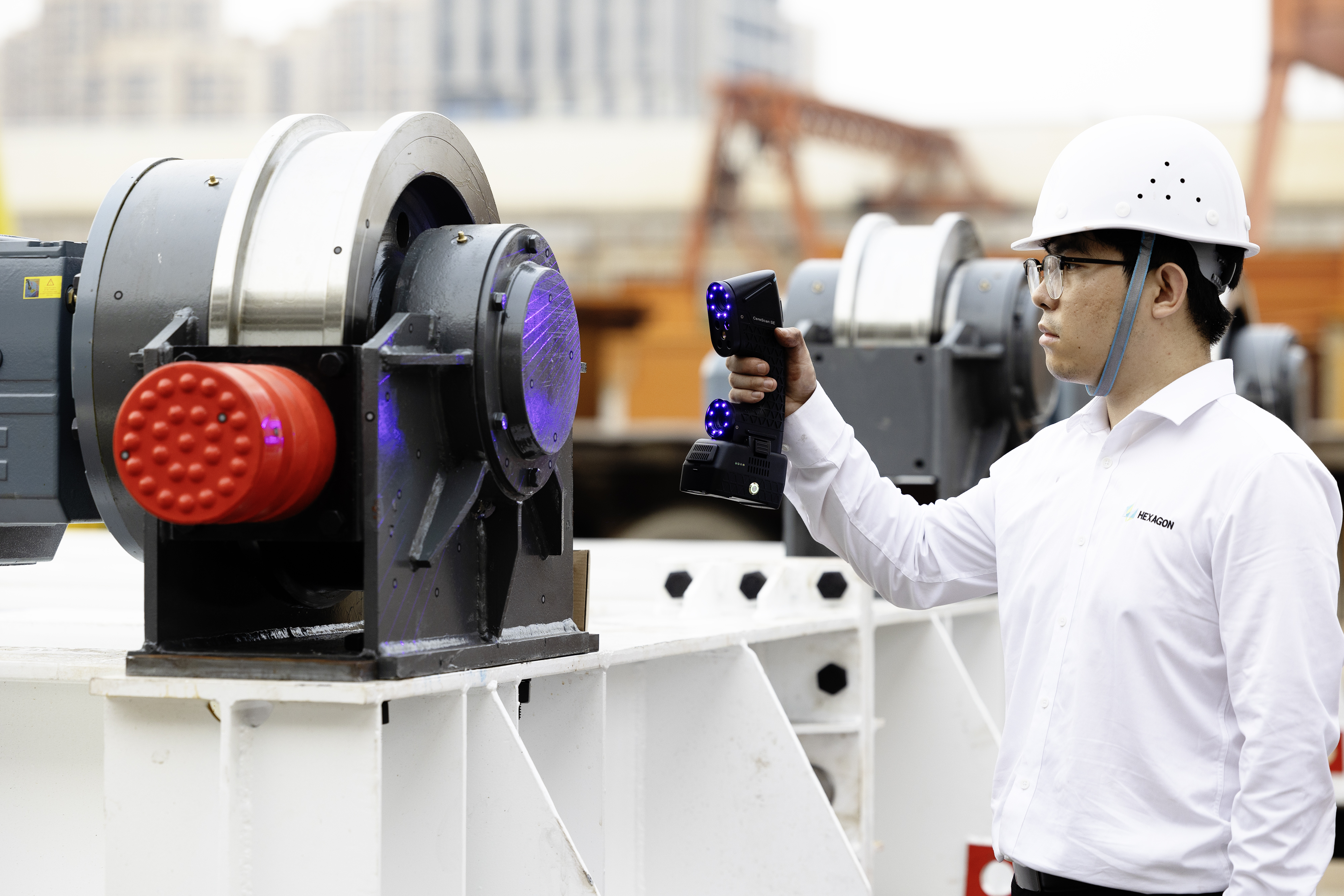

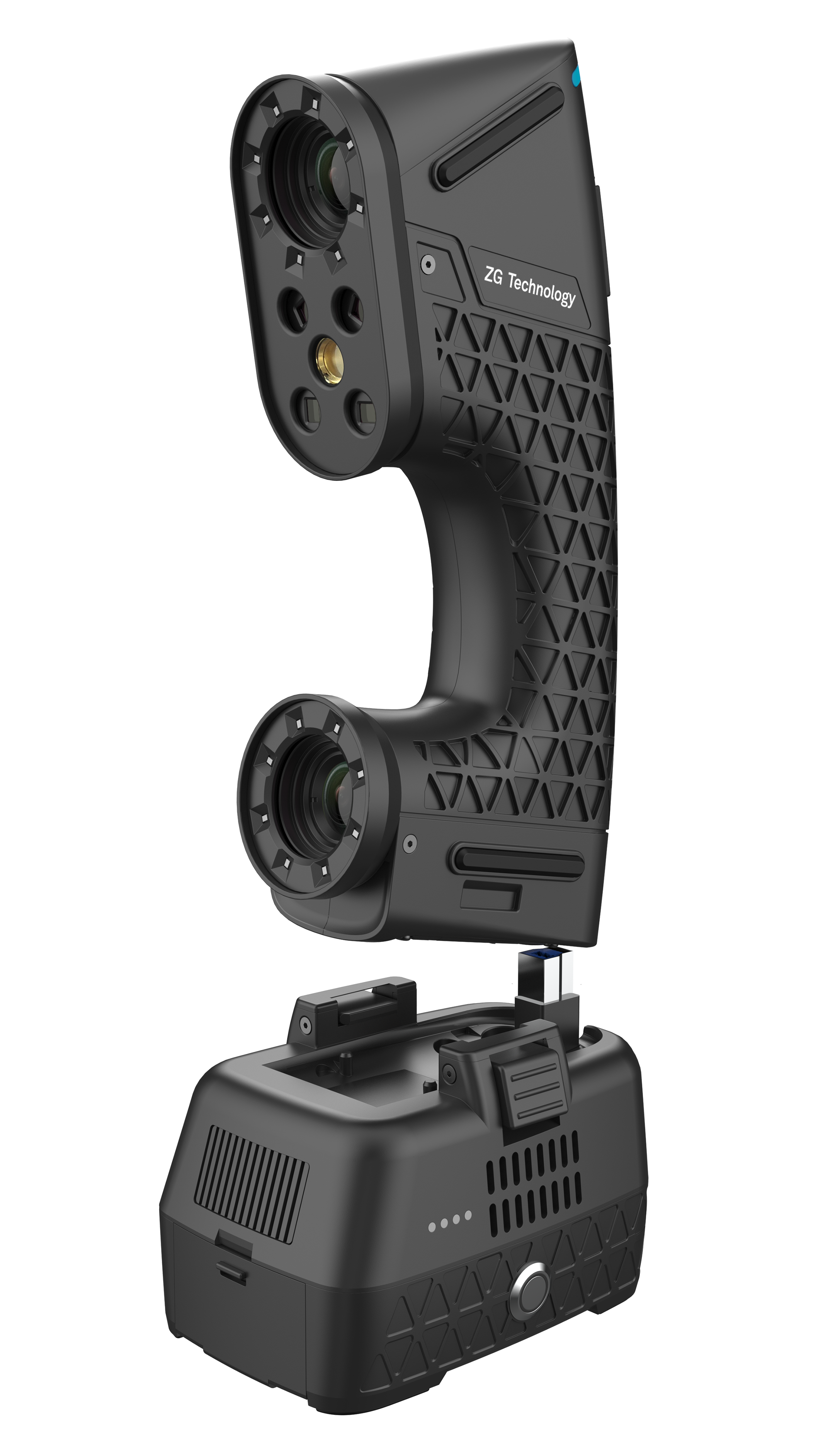

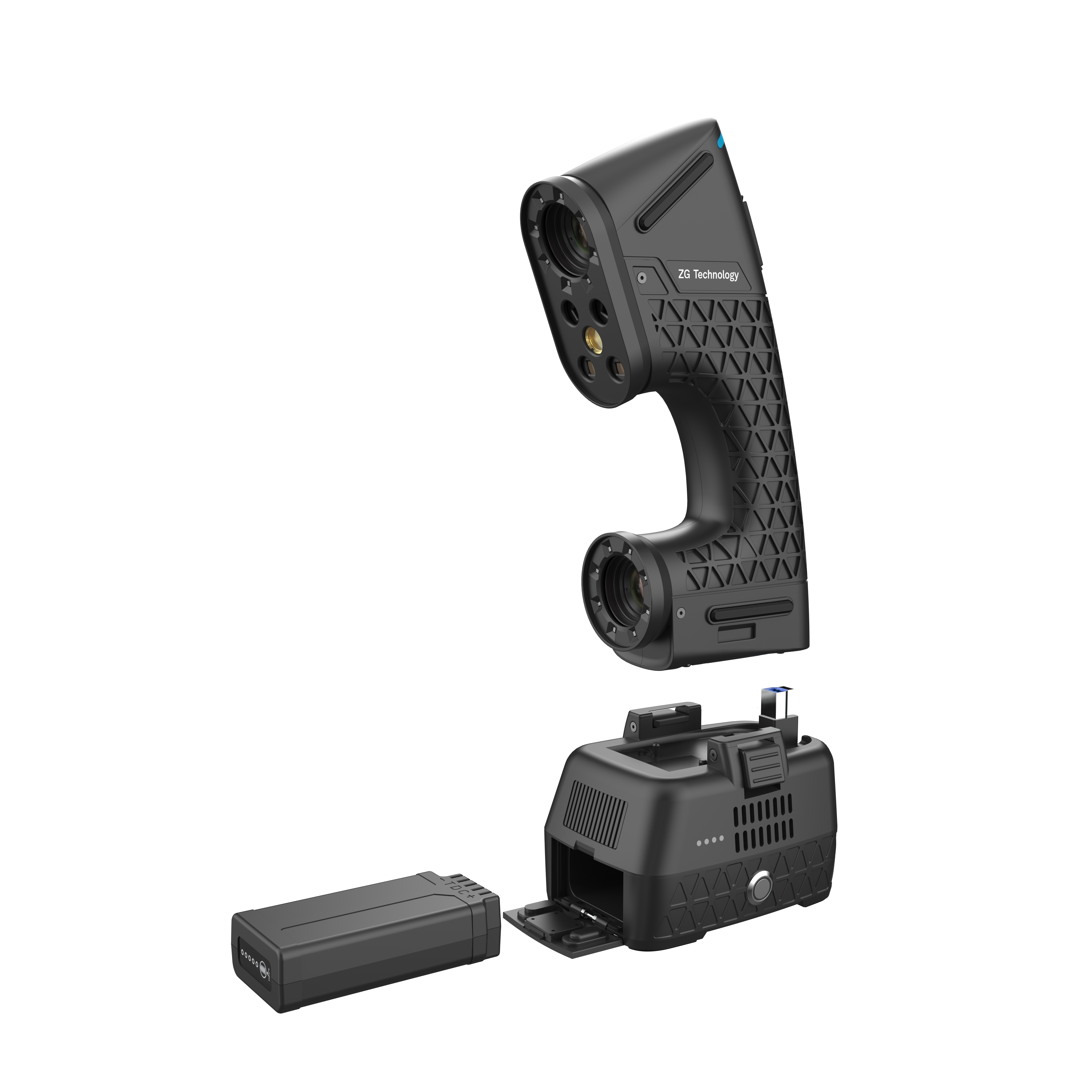

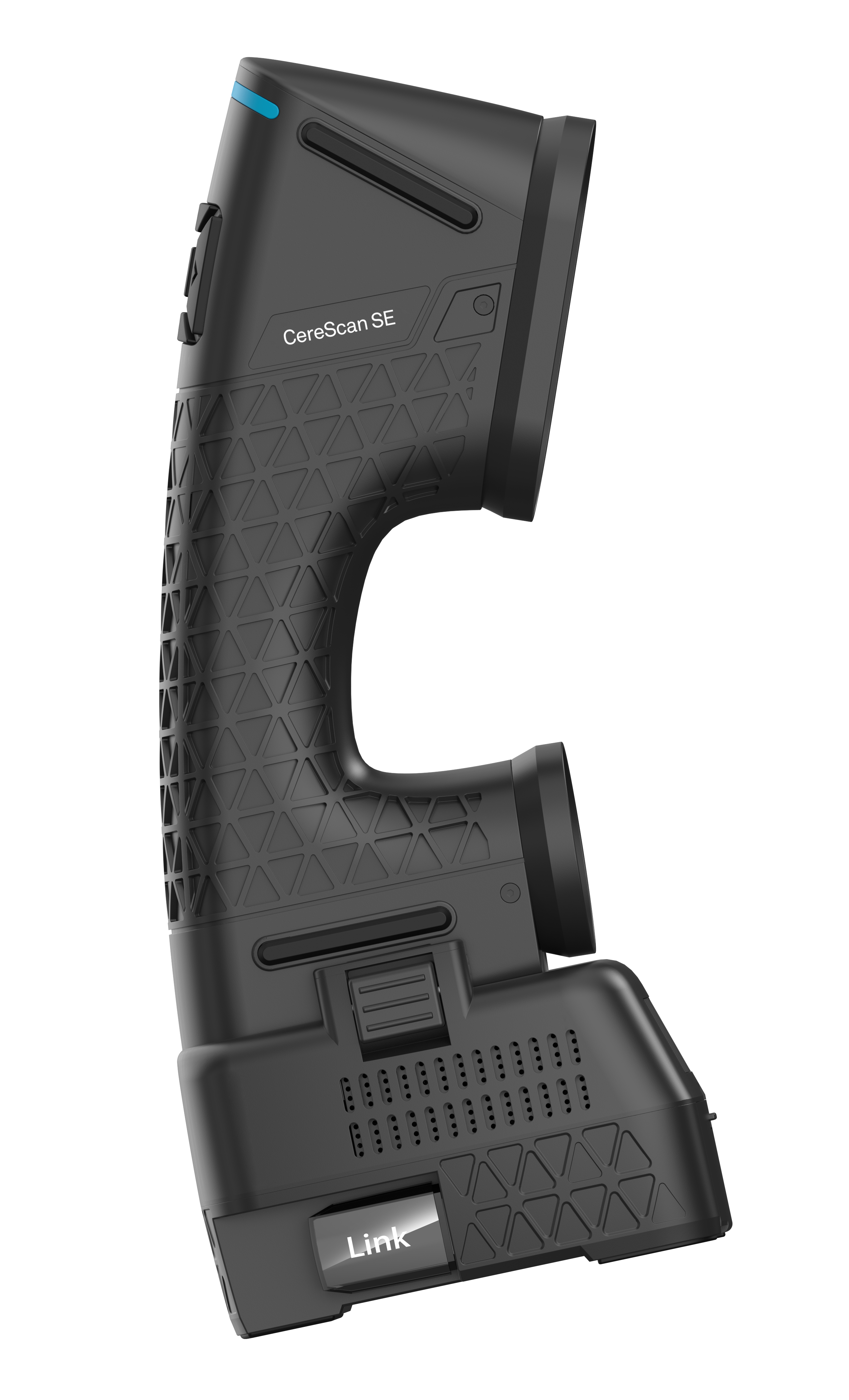

CereScan SE, a revolutionary wireless metrology-grade 3D scanner, is designed to optimize the scanning performance for hard-to-reach areas like pocket and narrow groove etc. The true wireless connection via the detachable wireless module redefines handheld scanning flexibility, and allows users to easily operate the device without cable, which brings great simpleness to the scanning process.

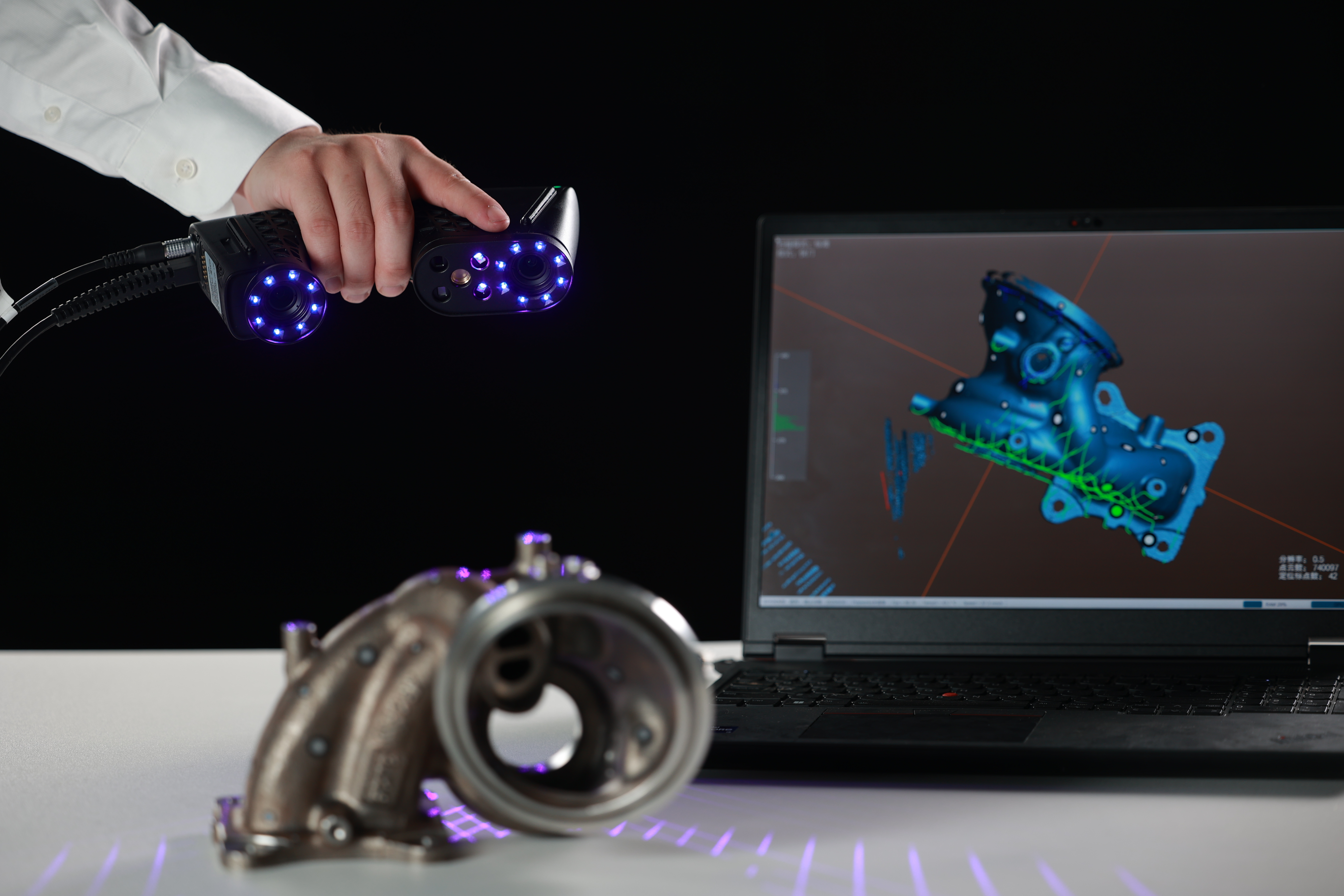

Based on the powerful and sophisticated algorithm, CereScan SE can provide users with rapid and efficient 3D scanning experience. Equipped with scale bars for Galaxy Mode, it also can be used to scan big workpieces with better volumetric accuracy control, and unique Hole Flash Capture Technology also enhance functionality for various scanning requirements.

Product Features

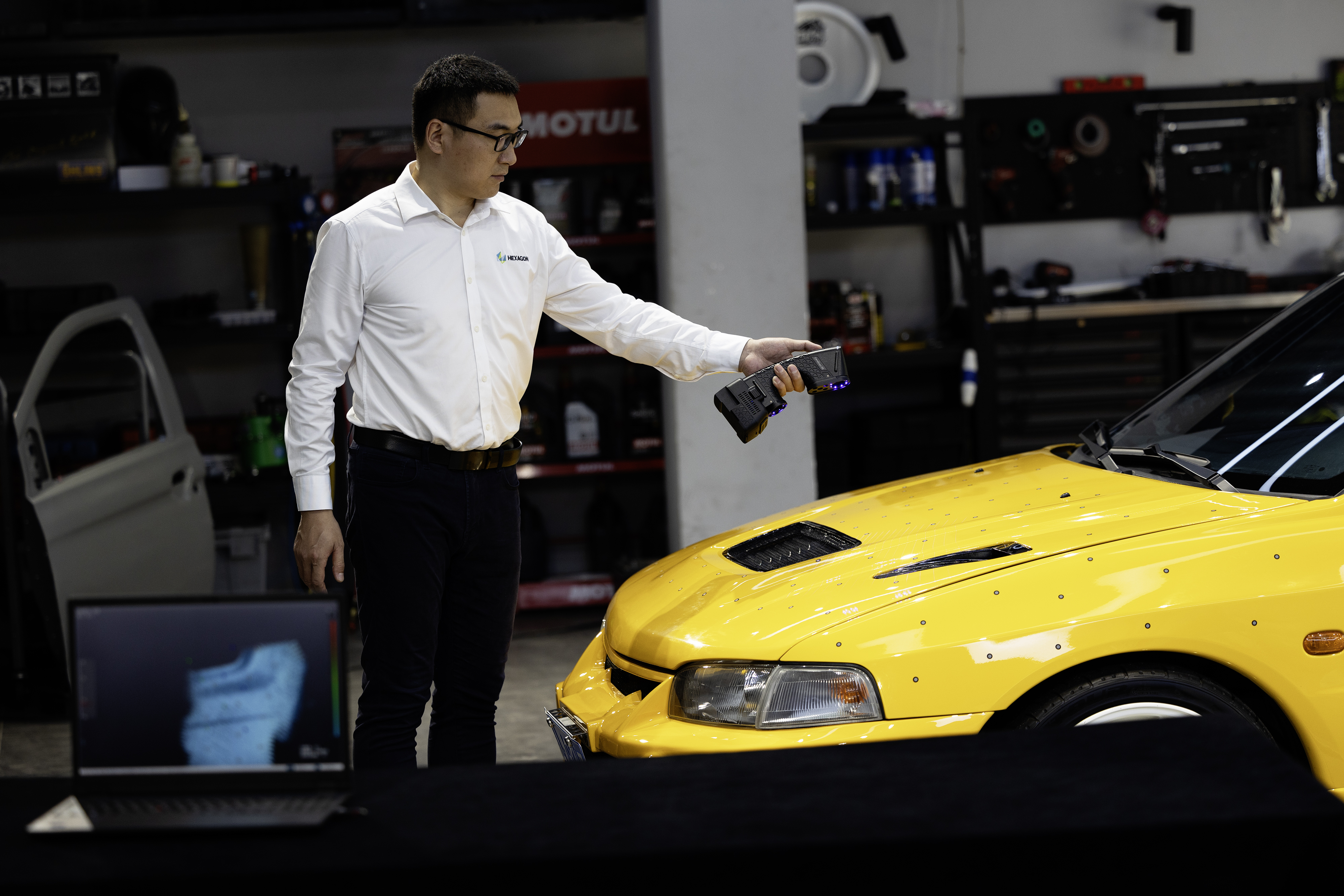

DV3A2694-╕─╨═║┼-300

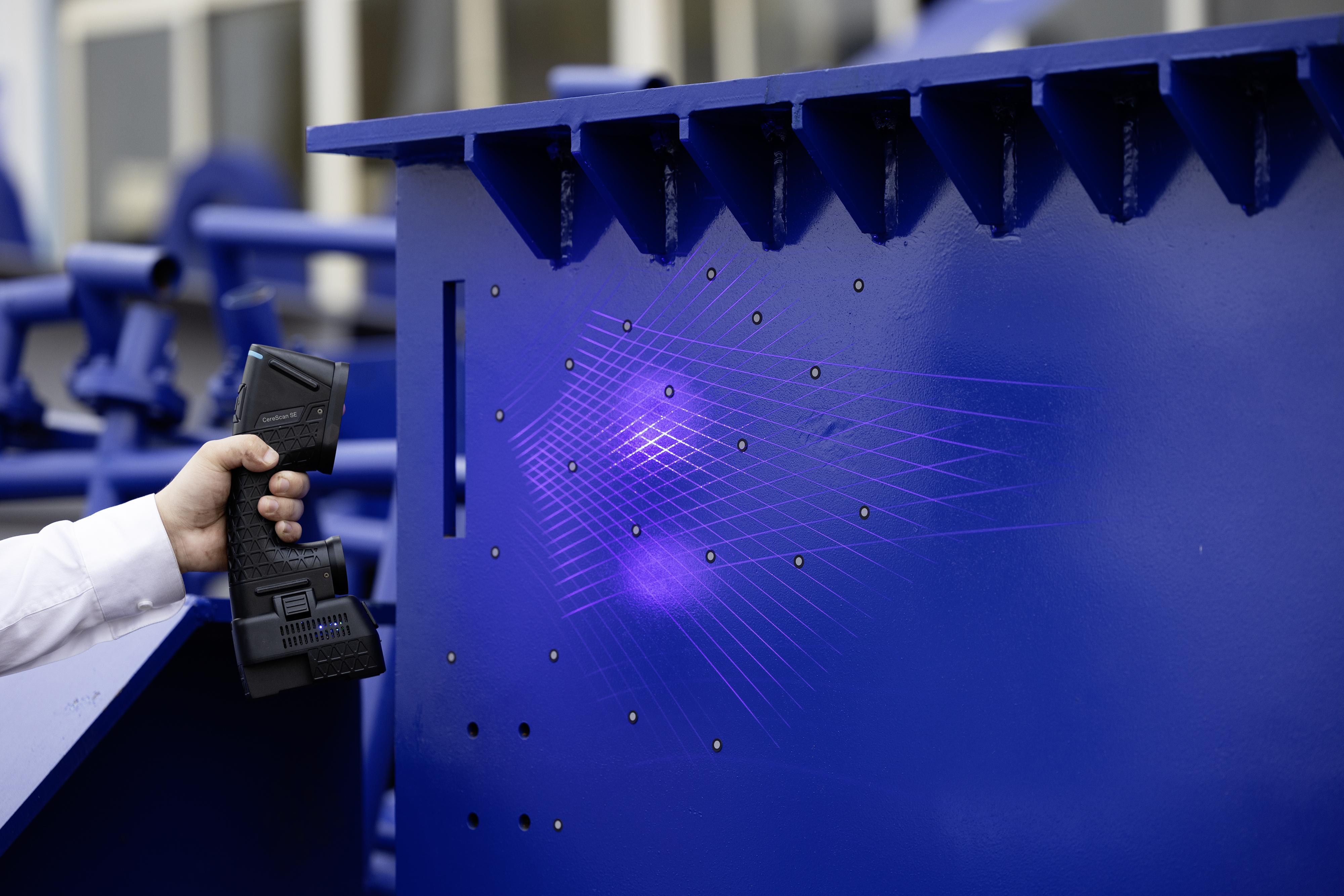

Wireless Scanning

True wireless technology allows you to move and scan freely.

Significant Efficiency

Scanning speed up to 4,000,000 measurements/s

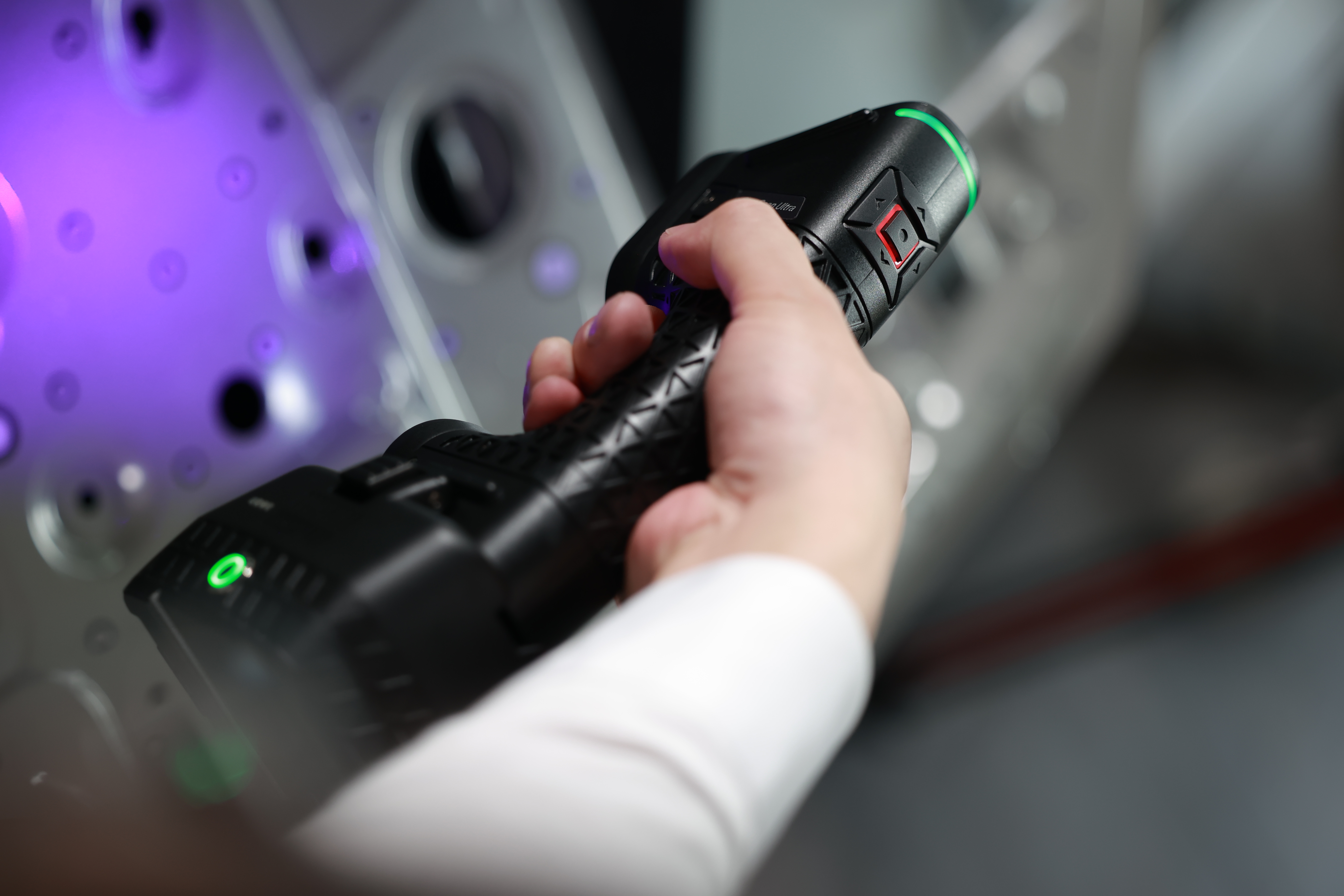

Hole Flash Capture

To enhance hole-measuring

adaptability and improve efficiency.

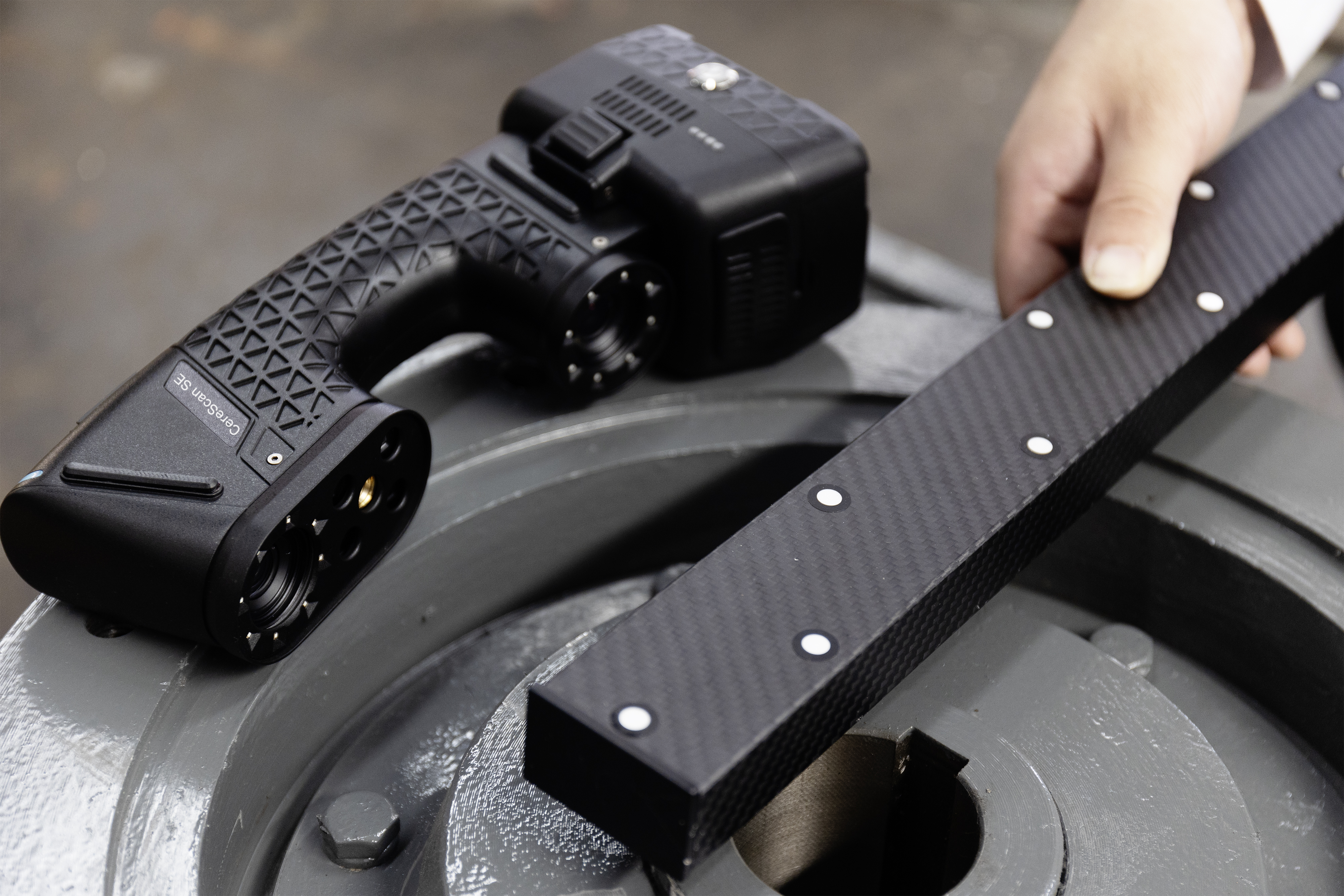

Galaxy Mode

To secure better volumetric accuracy for big workpiece easily.

Technical Specifications

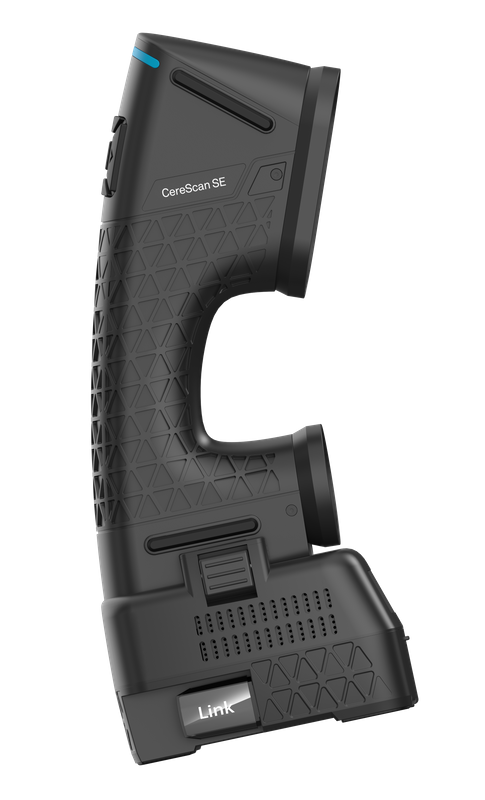

Model		CereScan SE
Measurement Rate		4,000,000 measurements/s
Scanning Area		Up to 680×530mm
Laser Source (Class Ⅱ: Eye Safe)		34 blue laser lines+extra single blue laser line+extra 17 blue laser lines
Resolution		Up to 0.02mm
Accuracy-Standard Mode		Up to 0.02mm
Volumetric Accuracy-Standard Mode		0.015+0.035mm/m
Volumetric Accuracy+Photoshot Max		0.015+0.015mm/m
Volumetric Accuracy+Scale Bar		0.015+0.02mm/m
Hole Flash Capture		Supported
Edge Detection		Supported
Working Distance-Fine Scan Mode		150 - 250 mm
Working Distance-Standard Mode		200 - 450 mm
Working Distance-Long-range Mode		200 - 750 mm
Weight		0.54kg (without wireless module)
Dimension		215×95×45mm
Connection Standard		USB 3.0 / Wi-Fi 6
Working Temperature		-10~40℃
Working Humidity（Non-condensing）		10%~90%
Export Format		.asc，.stl，.obj，.ply，.txt，.xyz and etc. Customized services available
Compatible Softwares		3D Systems(Geomagic Solutions), InnovMetric Software(PolyWorks), Dassault Systems(CATIAV5 and SolidWorks), PTC(Pro/ENGINEER), Autodesk(Inventor, Alias, 3ds Max, Maya, Softimage), Siemens(NX and Solid Edge) etc.
Patents		CN106228603B、CN208174805U、CN111486801B、CN212539085U、CN106767895B、 CN106204544B、CN304321958S、CN108038878B、CN211046994U、CN306620676U、 CN214224013U、CN214924384U、CN215572695U
