Manufacturers are constantly faced with the challenge of balancing the need for high production speeds with the demand for top-quality products. In a world where time is money and precision is paramount, the integration of inline 3D inspection systems has revolutionized the way industries approach quality control. These systems are designed to provide real-time, continuous inspections with zero downtime, ensuring that every part produced meets stringent quality standards without interrupting the production flow. ZG Technology’s inline 3D inspection systems provide manufacturers with a powerful tool to streamline operations, increase throughput, and maintain the highest levels of product quality.

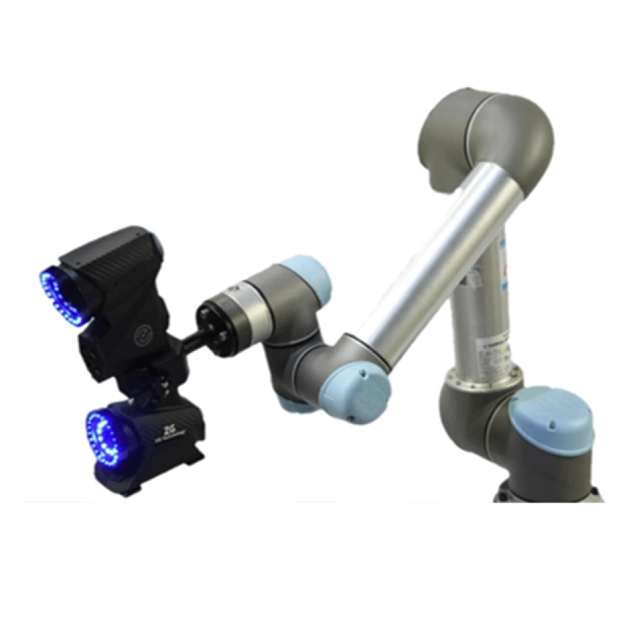

What Is an Inline 3D Inspection System?
An inline 3D inspection system is a quality control technology that is seamlessly integrated into the production line, enabling real-time inspection of products as they move through the manufacturing process. Unlike traditional offline quality checks, which require halting the production line to inspect parts, inline systems perform inspections without disrupting the production flow.
The primary benefit of an inline 3D inspection system is its ability to provide continuous, real-time feedback on the quality of each product. These systems use advanced laser scanning, structured light, or other 3D imaging technologies to capture high-resolution data of each part. The system compares the data with pre-set quality parameters to detect any defects, misalignments, or dimensional inaccuracies that may occur during manufacturing.
The key differences between inline and offline inspection methods are:
Inline inspection occurs during production, allowing for immediate feedback and corrective actions. This is essential for high-speed production environments.
Offline inspection typically requires halting production to check the quality of the parts, leading to delays and inefficiencies.
By integrating inline 3D inspection systems into the production process, manufacturers can ensure that every product meets quality standards without the need for production stoppages.
Real-Time Quality Assurance on the Production Line
The ability to perform real-time quality assurance is one of the standout features of inline 3D inspection systems. As parts are produced, the system continuously scans each one to ensure that it matches the pre-defined specifications. This real-time inspection process allows manufacturers to identify and address quality issues instantly, preventing defective products from continuing down the production line.
How Inline Systems Capture Data During Product Flow
Inline 3D inspection systems work by capturing high-resolution data from the part’s surface while it is still in motion. The data is processed instantly, allowing the system to compare it against the product’s CAD (Computer-Aided Design) model. The system can detect even the smallest deviations from the design specifications and provide an immediate "go/no-go" decision. This ensures that only parts that meet the required quality standards are allowed to continue through the production process.
Integration with PLC/Automation Controllers
The effectiveness of an inline 3D inspection system depends on its ability to integrate seamlessly with the existing production line automation. These systems are typically connected to PLC (Programmable Logic Controllers) and other automation controllers, allowing them to interact with the production process in real time. If a defect is detected, the system can immediately trigger an action, such as stopping the production line, adjusting the machine settings, or rejecting the defective part.
Instant Go/No-Go Decisions to Halt Defect Propagation
The ability to make instant go/no-go decisions is a critical feature of inline 3D inspection systems. When a defect is detected, the system can immediately halt the production of faulty parts, preventing them from moving further down the line. This ensures that defects are caught early, reducing the risk of further production errors and ensuring that only high-quality products reach the end of the production process.
Enhancing Production Efficiency with Inline 3D Systems
The integration of inline 3D inspection systems into manufacturing processes provides numerous benefits that enhance overall production efficiency. Traditional quality control methods often require stopping production to inspect parts, which can result in costly delays. With inline inspection, these disruptions are eliminated, allowing manufacturers to maintain a continuous flow of production.
No Need to Stop Production for Inspection
One of the primary advantages of inline 3D inspection systems is that they do not require stopping production to perform quality checks. The system scans parts as they move through the production line, ensuring that inspections are conducted without interrupting the manufacturing process. This is particularly beneficial in high-speed manufacturing environments where downtime can be costly and inefficient.
Accelerated Throughput with Minimal Inspection Delays
Inline 3D inspection systems allow manufacturers to speed up their production process while maintaining high-quality standards. The system’s ability to perform real-time inspections means that parts can be checked while the production line continues to operate. As a result, manufacturers can achieve faster throughput without sacrificing the quality of their products. This increased efficiency leads to higher output and reduced lead times.
Case Scenario: Automotive Parts Inline Measurement
In industries such as automotive manufacturing, where precision and speed are critical, inline 3D inspection systems are essential. For example, in the production of automotive parts, inline 3D scanning systems can quickly and accurately measure components such as body panels, engine parts, and chassis components. By ensuring that these parts meet the required specifications in real time, manufacturers can reduce the risk of defects and ensure the quality of the final product.
Subsection: Reducing Waste and Rework
The ability to identify defects early in the production process is key to reducing waste and rework. Inline 3D inspection systems provide immediate feedback on the quality of each part, allowing manufacturers to make adjustments before faulty products move further down the production line. This leads to:
Fewer false rejections: The system can accurately identify defective parts, reducing the likelihood of good parts being rejected.
Lower scrap rates: Early detection of defects prevents the production of large quantities of faulty parts, reducing the amount of scrap generated.
Avoiding costly recalls: By catching defects before they reach the end of the line, manufacturers can avoid the significant costs associated with product recalls.
Technology Behind Inline 3D Inspection
Inline 3D inspection systems rely on a variety of technologies to ensure high-precision measurements. These systems typically use laser scanning, structured light, and point cloud processing to capture and analyze the geometry of parts in real time.
Laser Scanning and Structured Light
Laser scanning uses a laser beam to capture the surface geometry of an object. The laser is projected onto the part, and the system measures the reflection of the laser light to create a 3D model of the part. Structured light systems, on the other hand, project a series of light patterns onto the part and use the deformation of these patterns to generate a 3D image.
Point Cloud Processing
Point cloud processing is an essential step in converting the raw data from laser scanning or structured light into a usable 3D model. The data points collected by the scanning system are processed into a point cloud, which represents the surface of the part. This model can then be compared to the CAD design to detect any deviations or defects.
Subsection: Advanced Sensors and Smart Software
The advanced sensors used in inline 3D inspection systems are designed to capture highly accurate data in demanding production environments. These sensors are equipped with the ability to detect minute defects that might be missed by traditional inspection methods. The software used in conjunction with these sensors is capable of processing the data in real time, providing instant feedback and enabling automated decision-making.
Comparison With Traditional Metrology Methods
When compared to traditional quality control methods, inline 3D inspection systems offer several advantages:
Inline 3D vs Manual Gauge Measurement: Manual measurement techniques, such as using calipers or gauges, are time-consuming and prone to human error. Inline 3D inspection systems eliminate the need for manual measurements, offering a faster and more accurate solution.
Inline 3D vs Offline Lab Metrology: Offline lab inspections often involve halting production to send parts to a lab for testing. This can lead to delays and inefficiencies. Inline systems, on the other hand, perform inspections in real time, ensuring that quality control is continuous and without interruption.
Impact on Throughput and Quality KPIs: By reducing inspection time and improving accuracy, inline 3D inspection systems help improve throughput and key performance indicators (KPIs) related to product quality and manufacturing efficiency.
Best Practices for Deploying Inline 3D Inspection Systems
Deploying an inline 3D inspection system requires careful planning and execution to ensure optimal performance. Key best practices include:
Placement Strategy on Lines: The system should be strategically placed at key points in the production line where defects are most likely to occur.
Integration with Existing Automation: The inspection system should be integrated with existing PLCs and automation controllers to ensure seamless communication and data flow.
Calibration and Validation Routines: Regular calibration and validation of the system are essential to maintain accuracy and consistency over time.
Conclusion
In conclusion, inline 3D inspection systems are an essential component of modern manufacturing, offering zero-downtime metrology that enhances both production efficiency and product quality. By integrating these systems into the production line, manufacturers can ensure real-time, continuous inspections, leading to faster throughput, reduced waste, and improved product quality. For companies looking to stay competitive and meet the demands of modern manufacturing, adopting inline 3D inspection systems is a strategic move.
If you’re interested in learning more about how inline 3D inspection systems can benefit your manufacturing processes, contact us today!
FAQ
Q1: What industries can benefit from inline 3D inspection systems?
A: Industries such as automotive, aerospace, consumer electronics, and heavy machinery manufacturing can benefit greatly from inline 3D inspection systems.
Q2: How does an inline 3D inspection system improve production efficiency?
A: By performing real-time inspections without interrupting production, inline 3D inspection systems reduce downtime and improve throughput, increasing overall efficiency.
Q3: What types of defects can inline 3D inspection systems detect?
A: Inline 3D inspection systems can detect a wide range of defects, including dimensional inaccuracies, surface flaws, and misalignments.
Q4: How does an inline 3D inspection system integrate with existing production lines?
A: These systems can be integrated with existing PLCs and automation controllers, allowing for seamless communication and real-time decision-making during production.
