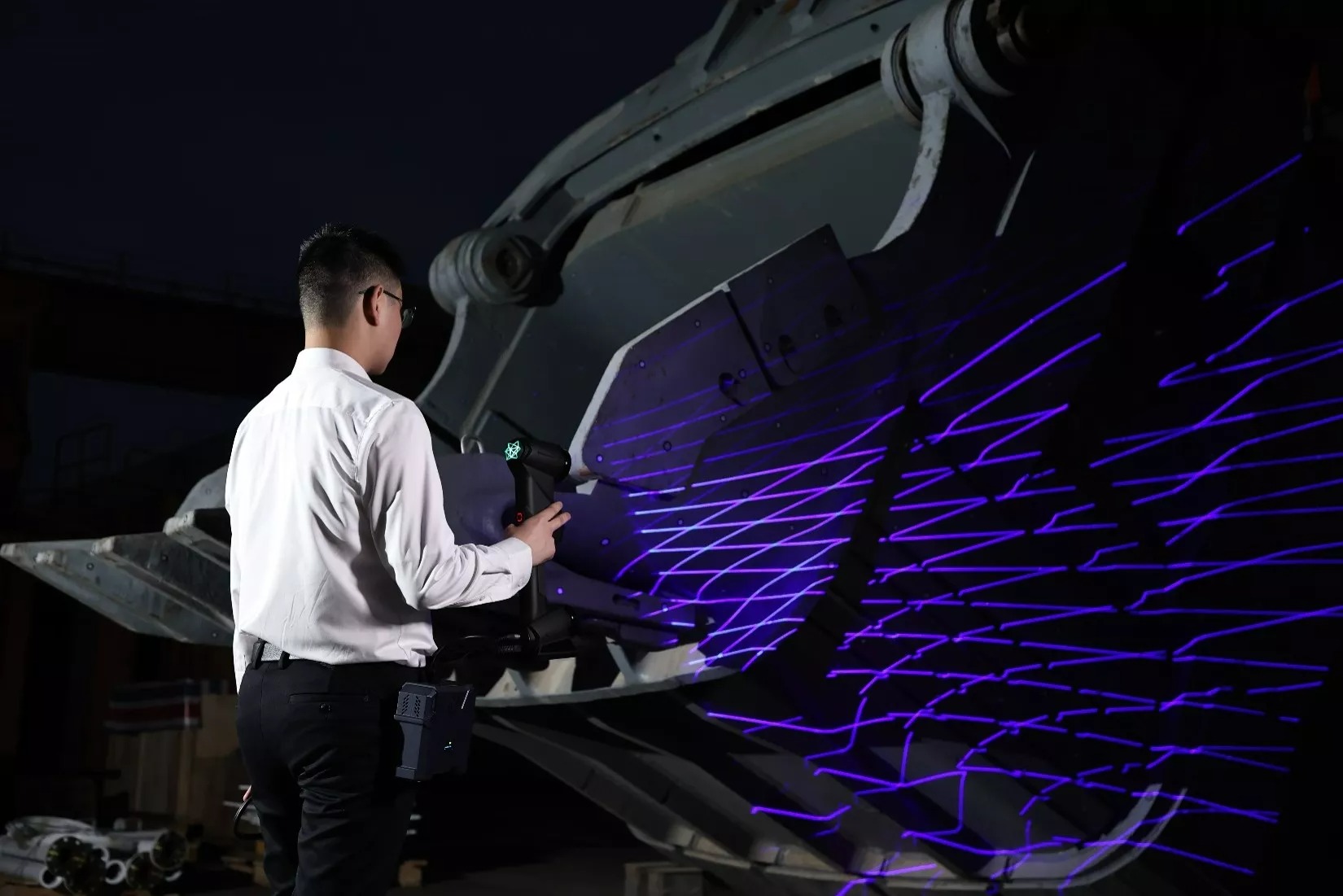

Large Part Measurement 3D Scanner
The Large Part Measurement 3D Scanner provides exceptional accuracy and efficiency for measuring large components, making it the perfect solution for industries requiring fast, precise data capture and improved productivity.
Product Center
MarvelScan Tracker Free Marker Free High Accuracy 3D Scanner for 3D Measurement
MarvelScan Tracker Free Marker Free 3D Scanner For Metrology-grade Measurement
AtlaScan Precise Blue Laser 3D Scanner for Non Contact Measurement
What is Large Part Measurement 3D Scanner?
A Large Part Measurement 3D Scanner is an advanced metrology tool engineered to capture precise three‑dimensional data of large, heavy, or complex objects that are difficult to measure with traditional tools.
Using high‑speed laser or optical scanning technology, it rapidly collects millions of surface points to generate accurate point clouds and detailed 3D models. These digital representations enable dimensional inspection, quality control, reverse engineering, and design verification across demanding industries such as aerospace, automotive, energy, heavy machinery, casting, and mold manufacturing.
This scanner excels in measuring large components with intricate geometries — without contact or physical fixtures — which saves time, reduces human error, and boosts efficiency throughout production workflows.
By combining high scanning speed, adaptability to various part sizes, and seamless integration with CAD and inspection software, it helps manufacturers ensure compliance with strict tolerances and quality standards, while accelerating both product development and inspection cycles.
Why Choose ZG Technology’s Large Part 3D Scanner?
The Large Part Measurement 3D Scanner offers unmatched precision, speed, and flexibility, making it the ideal solution for accurately measuring large, complex parts in a variety of industrial applications.
Exceptional Large‑Scale Precision and Efficiency
ZG Technology’s Large Part Measurement 3D Scanner delivers outstanding performance for capturing detailed 3D data on large and complex parts, far beyond traditional measurement tools. Designed to handle oversized components with ease, it offers high accuracy and fast scanning capabilities that dramatically reduce inspection time. This enables quality control teams and production engineers to complete measurements efficiently while ensuring data integrity and consistency for critical dimensional verification.
Flexible and Reliable Operation in Diverse Environments

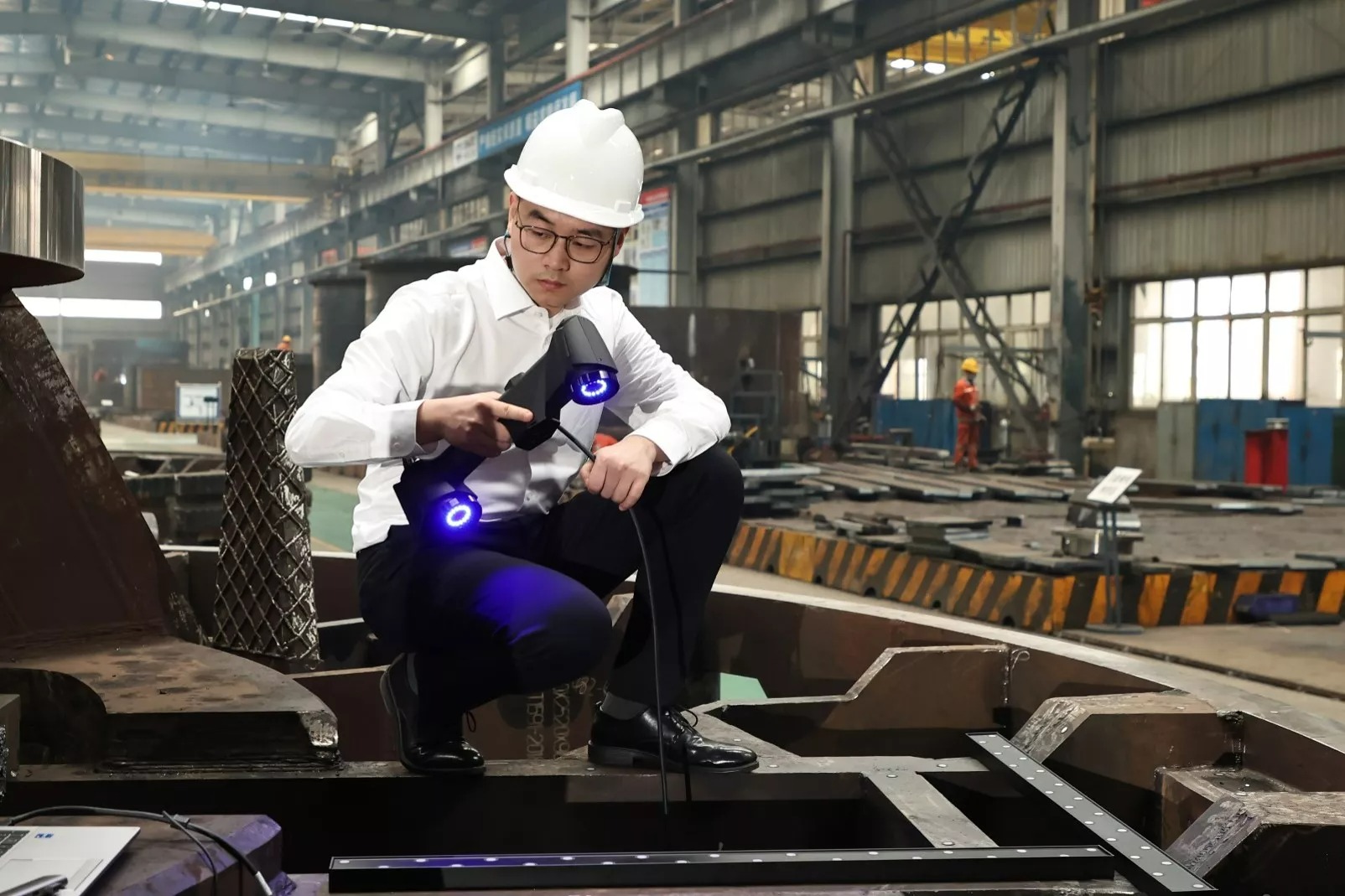

Built for real industrial applications, the scanner’s flexible and adjustable measurement ability allows for high‑quality data acquisition of large parts without extensive surface preparation. Its adaptability means that you can scan directly on the shop floor, even for parts with intricate details or hard‑to‑reach features, minimizing downtime and simplifying workflows.
Designed for Practical Use and Seamless Integration
As part of ZG Technology’s professional metrology‑grade 3D scanner portfolio, this solution integrates smoothly with your existing inspection, reverse engineering, and product development processes. With support for widely‑used CAD and inspection software, plus reliable engineering support, you can scale your measurement capabilities, improve product quality, and stay competitive with cutting‑edge 3D measurement technology.
Where It Drives Value: Key Applications

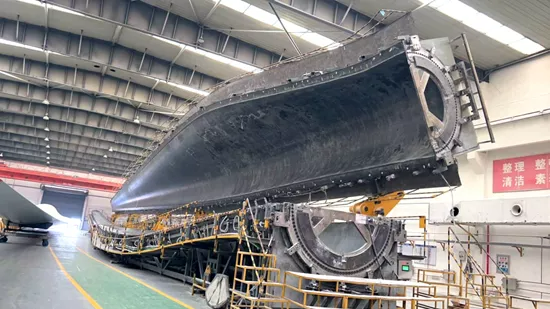

Application1

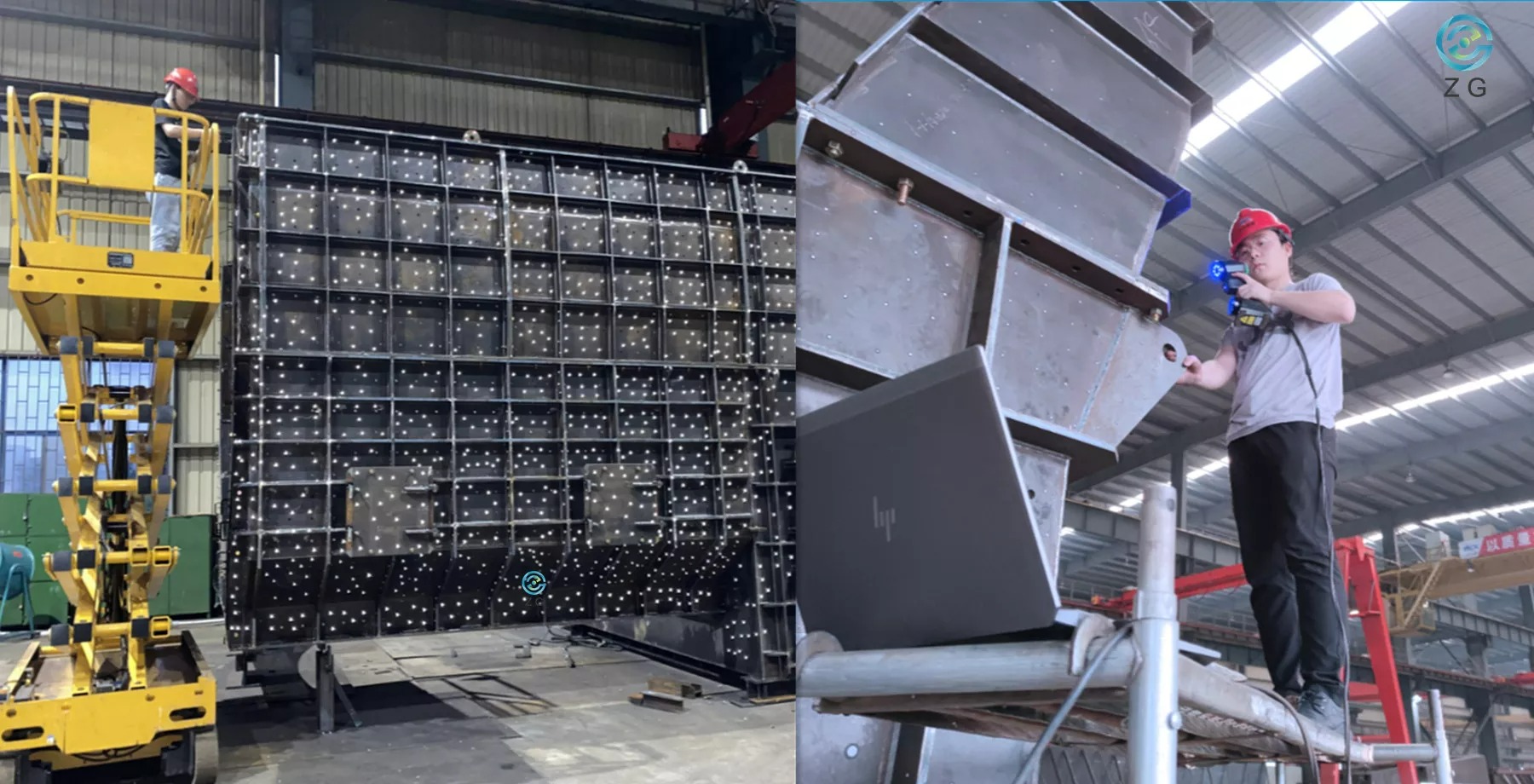

Application2
Application3
Product Features
High Scanning Efficiency for Rapid Data Capture
Capable of up to 3,380,000 measurements per second.
Achieve quick and precise data capture for large, complex parts, dramatically reducing inspection time. This high-speed performance accelerates production cycles and boosts productivity for industries that rely on rapid, accurate measurements.

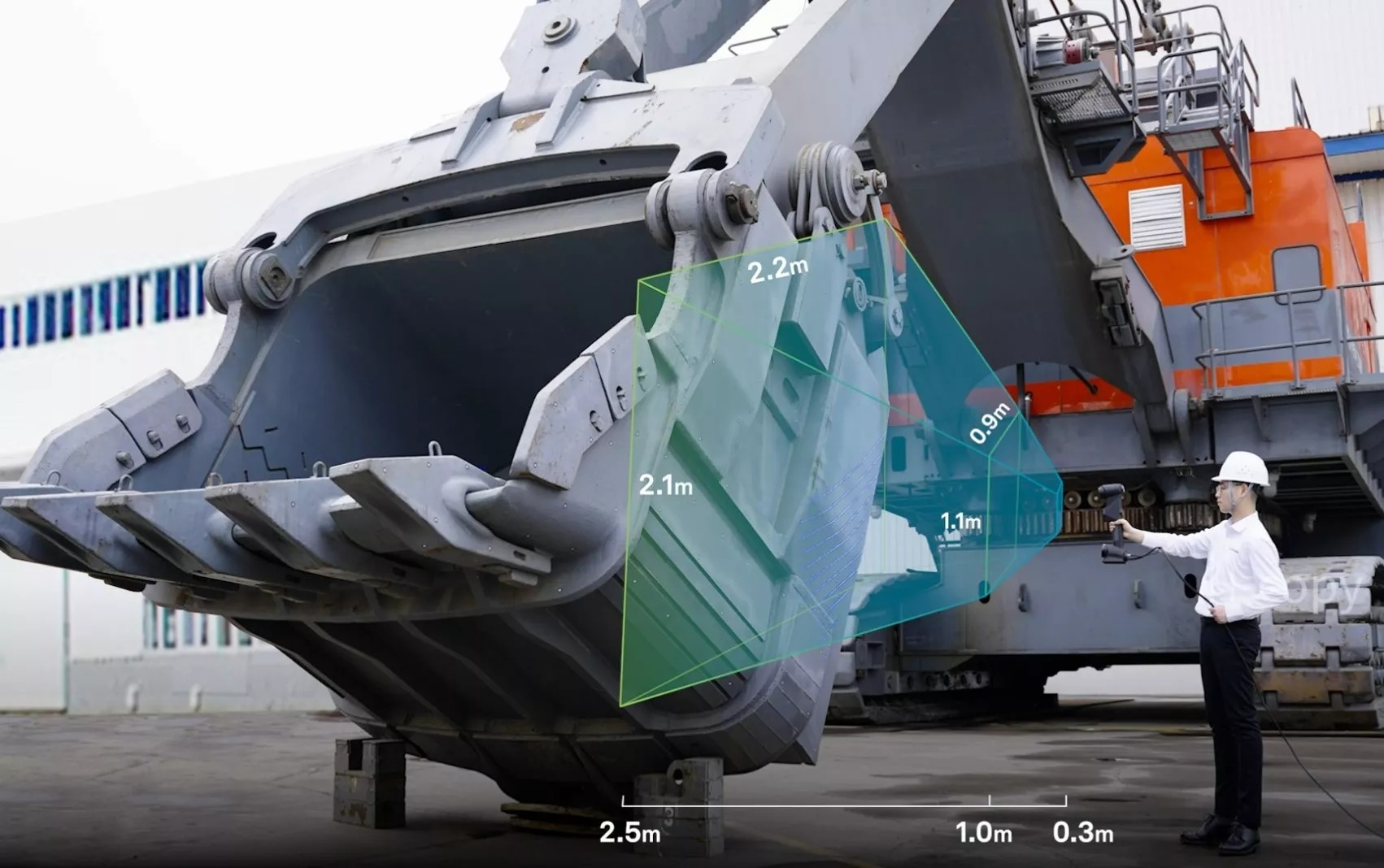

Super Big Measurement Volume & Flexible Coverage
Total volume up to 4.2m³ | Scanning area: 2200mm x 2000mm.
Effortlessly handle oversized parts with a flexible and adjustable scanning range. This makes it the ideal solution for covering large, intricate components in heavy industry, aerospace, automotive, and other large-scale manufacturing fields.
Ultra-fine Scanning Details with Easy Transport
Portable design in a single compact case, including FREEBOX.
Easily transport the scanner to any site without compromising on detail. It captures ultra-fine data to ensure even the smallest features are measured with precision, offering both mobility and exceptional scanning quality.
Powerful Multi-functional Capabilities
Features real-time calibration & Galaxy Mode for volumetric accuracy.
Intelligent adjustments maintain precision throughout the scanning process without warm-up time. This streamlines workflow, enables smooth and automated operations, and ensures consistently high accuracy across all measurements.
Why choose us?
With over 130 national patents and software copyrights and more than 20 national and ministerial‑level awards, ZG’s technological strength is rooted in real innovation. This extensive portfolio of honors reflects the company’s commitment to excellence and continuous advancement in 3D measurement technology.
Proven Technology with Patents and Awards
Designed for use in aerospace, transportation, energy, heavy industry, and more, our scanners deliver flexible, high‑accuracy performance directly on the shop floor — even for oversized components and challenging geometries — helping you meet stringent quality standards.
Wide Industrial Application & Adaptability
Behind ZG’s technological strengths is a highly experienced research and development team composed of professors, doctors, and masters specializing in photogrammetry and measurement science. This expert team continuously advances product capabilities, ensuring that ZG’s scanners deliver precise, stable, and efficient performance across demanding applications such as quality control, reverse engineering, and visualization.
Expert R&D Team & Professional Expertise
ZG Technology’s solutions are deployed in markets across North America, Europe, Asia, and beyond, supported by a growing international presence and cooperation with leading industry partners. Its commitment to superior engineering services, professional training, and responsive support makes ZG a reliable partner for businesses investing in high‑precision 3D measurement solutions.
Global Presence & Trusted Partnerships
We pursue the values of excellence and are committed to achieving the highest quality standards and outstanding performance.
Start the Conversation
Connect with our team of seasoned experts for dedicated technical support and comprehensive, one-stop solutions tailored to the global marketplace.
