Professional Metrology-grade 3D Laser Scanner - Precision Measurement Solutions

1. Capture High-Precision Point Cloud Data

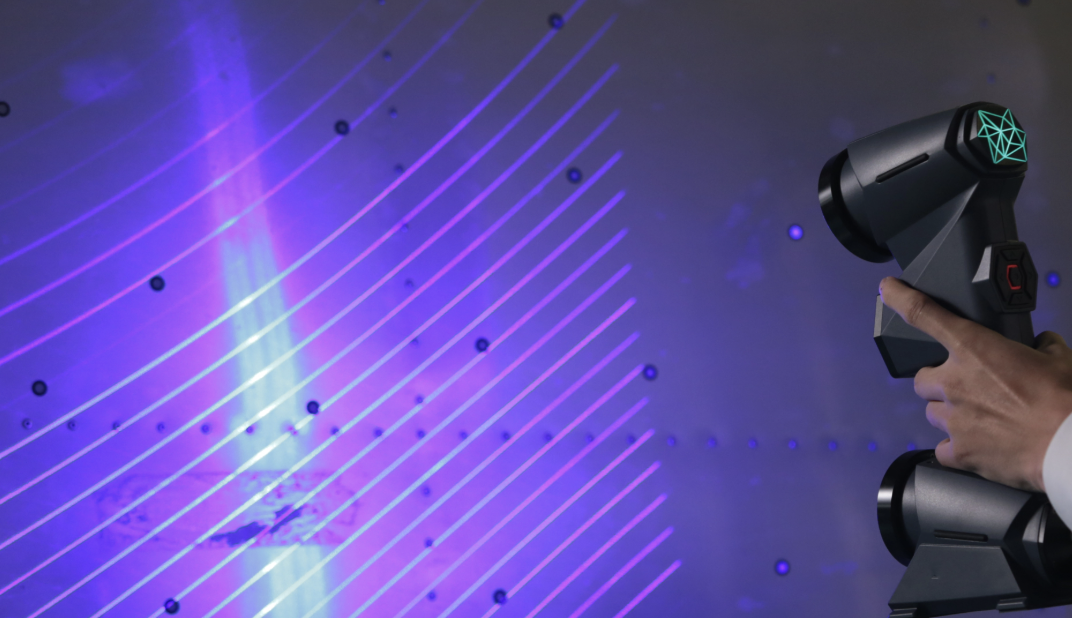

Use the Professional Metrology-grade 3D Laser Scanner to acquire accurate point cloud data from the target object. This forms the foundation for subsequent 3D modeling, reverse engineering, and precision analysis.

2. Process Point Cloud for Optimization

Import the scanned point cloud into ZGScan software to generate triangular mesh (STL) data. Apply preprocessing steps such as coordinate transformation, noise reduction, smoothing, optimization, and simplification. The resulting data is ready for applications like 3D printing, 3D engraving, and dimensional comparison analysis.

3. Reverse Engineering and Feature Extraction

Use professional software like UG, CATIA, Geomagic Design X, or similar platforms to process the triangular mesh. Extract features through patch fitting, cross-section creation, and curve extraction, enabling innovative design, optimization, and precise modeling for complex geometries.

4. Generate CNC or Mold-Ready Models

After calculations, transformations, and modifications in CAD/CAE/CAM software, create a high-precision reverse engineering model. These models can be used directly for CNC machining, mold design, or additive manufacturing, while STL 3D data can even be imported directly into 3D printers or CNC engraving machines for fast production.
