How to Set Up a Wireless Scanner?

Industrial and engineering sectors are rapidly shifting from tethered workstations to fully mobile equipment. You no longer need to be chained to a desk. Traditional wired setups severely limit mobility around large objects. They also create hazardous tripping conditions on the shop floor. Conversely, a poorly configured wireless network introduces severe risks. You might experience frustrating data packet loss, debilitating rendering latency, or critical security vulnerabilities. Resolving these issues is paramount for operational efficiency. The goal of this guide is to provide a highly technical, step-by-step framework. We will show you how to deploy a reliable Wireless Scanning Module efficiently. You will learn to eliminate spatial constraints without sacrificing the data integrity or transmission speed of a hardwired connection. You can achieve complete spatial freedom.

Key Takeaways

• Successful implementation requires assessing environmental network interference prior to hardware deployment.

• Enterprise-grade setups rely on dedicated modules (like the ZGFreeBox series) for edge processing and latency reduction.

• Standardizing the calibration and pairing protocol prevents 80% of common connectivity drops during active scanning.

• Evaluating a Portable 3D Scanner for wireless use must factor in battery lifecycle, data transmission limits, and firmware compatibility.

1. Defining Success: Why Migrate to a Wireless Scanning Module?

Tethered scanners drastically restrict your physical movement during daily inspections. They complicate the process of capturing complex or large-scale topographies. Cables constantly snag on heavy machinery or raw materials. This ultimately increases your setup time in the field. Removing these thick cables fundamentally transforms how engineers interact with physical environments. You gain the ability to maneuver around automotive chassis or aerospace fuselages seamlessly.

To evaluate a successful deployment, the system must achieve strict parity with wired setups. You cannot accept compromised data simply because you removed a cable. We judge this operational parity across three critical performance areas. First, you must establish data transmission stability. You need absolute zero packet loss during continuous operation. Second, the system must maintain low real-time rendering latency. Systems must stay well under standard operational thresholds. Third, you must ensure strict security and compliance. You must enforce encrypted data transfer on all local networks.

Moving to a wireless workflow is not an automatic fix. It requires careful management of hardware logistics. You must manage battery lifecycles proactively. You must also account for local network interference. Facility managers often overlook these critical environmental factors during the initial hardware procurement stage. Ignoring these realities leads to frustrating mid-shift disconnections.

Wired vs. Wireless Deployment Criteria

2. Pre-Installation Checklist and Network Preparation

Before you turn anything on, you must verify your technical foundation. Start with your system and hardware requirements. Verify your host PC specifications carefully. Check your graphics processing unit (GPU) readiness. Dense data rendering requires substantial computational power. Ensure you install all current driver updates. Outdated motherboard drivers frequently cause sudden communication bottlenecks.

Next, conduct a thorough network environment assessment. You need to differentiate between direct pairing and local network integration. Direct Wi-Fi Direct or Bluetooth pairing creates an isolated bridge. This works best for quick, independent tasks. Full local network integration connects the hardware to your existing infrastructure. This suits factory-wide data management and automated server uploads.

Identify potential signal interference zones on the factory floor. Heavy machinery often disrupts legacy frequency bands. Industrial environments heavily favor specific channels for cleaner transmission. Microwaves, older remote controls, and generic Bluetooth devices crowd certain spectrums. You must isolate your equipment to ensure stability.

Signal Interference Probability Chart

Engage your IT department early in this process. Ensure you secure IT clearance for Media Access Control (MAC) address filtering. Many enterprise networks block unknown devices by default. Request specific firewall bypasses if the hardware requires proprietary port access. Skipping this administrative step often results in silent, unexplainable connection failures during deployment.

3. Step-by-Step Configuration for Your Portable 3D Scanner

Follow this structured sequence to configure your device correctly. A disciplined approach prevents common setup errors. Do not rush the initialization phases. Proper sequencing ensures a robust handshake between the hardware and your host workstation.

1. Phase 1: Hardware Initialization. Begin by powering the device and the dedicated receiver module. Ensure battery packs are fully seated. Carefully verify the LED status indicators. Solid green usually indicates complete network readiness. Blinking amber lights typically signal ongoing boot sequences or searching modes. Do not proceed until you see the confirmation lights.

2. Phase 2: Establishing the Connection. Navigate your host software to initiate device discovery. Execute the required pairing protocol carefully. You might use manual IP address input for strict enterprise networks. This provides maximum control over your subnet. Alternatively, use auto-discovery protocols for faster, ad-hoc setups in the field.

3. Phase 3: Calibration Under Wireless Load. Perform initial diagnostic captures immediately. Do not skip this step. Scan a known calibration artifact. Test the coordinate accuracy rigorously against baseline metrics. Monitor the transmission speed in real time. You must ensure the wireless bridge handles dense geometric data without choking or buffering indefinitely.

Do not rely on verbal instructions for future setups. Create a standardized SOP (Standard Operating Procedure). This documentation allows shift workers to seamlessly connect the hardware. They should accomplish this task without requiring constant IT intervention. Include clear screenshots of the software handshake process. List the exact IP addresses required. Highlight common error codes and their immediate solutions. A robust SOP prevents massive operational downtime.

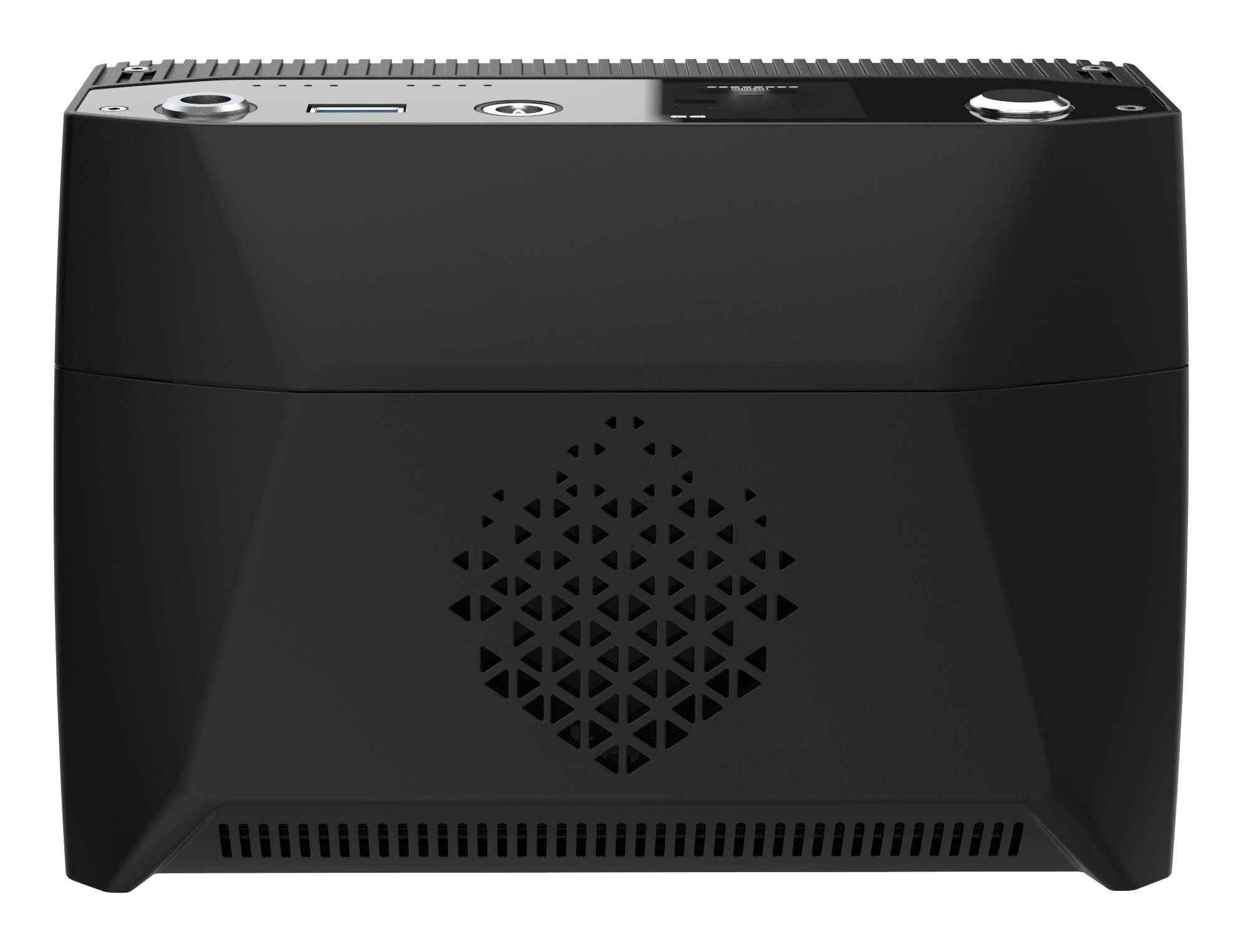

4. Scaling Performance with the ZG FreeBox v2 and ZGFreeBox-S/T

Enterprise workflows demand much more than consumer-grade adapters. They require dedicated, robust hardware architecture. High-performance modules handle the heavy lifting of data compression right at the source. They process dense geometrical data before transmission begins. This edge-computing approach significantly reduces bandwidth strain. It prevents your local router from crashing under immense data loads.

Consider the specific integration nuances of the ZG FreeBox v2. Proper setup requires active battery management protocols. You must swap power cells proactively to avoid mid-task shutdowns. You must also optimize the physical module placement. Operators often clip it directly to a secure belt. Maintaining a clear line-of-sight ensures maximum signal integrity during complex structural assessments. Do not hide the transmitter under heavy layers of clothing.

Evaluating different module variants helps you fit specific environmental constraints. For example, ZGFreeBox-S/T models serve highly distinct operational profiles. They excel in diverse conditions. You might operate on a stationary, highly controlled shop floor. Conversely, you might conduct remote field operations in unpredictable environments. Match the specific hardware variant to your exact spatial needs.

You must acknowledge operational limits realistically. Clarify the maximum effective range before data latency occurs. Avoid believing exaggerated "unlimited range" marketing claims. Physics dictates that signal degradation will happen over distance. Physical barriers like concrete pillars or steel enclosures heavily impact transmission speed. Test the true operational radius within your specific facility.

5. Troubleshooting, Security, and Compliance Risks

Even perfect deployments face operational hurdles over time. You must prepare for common implementation challenges. Anticipating these issues keeps your production schedule intact. Most connection drops stem from predictable network conflicts.

Resolving IP conflicts is paramount when multiple units operate within the same subnet. Two machines fighting for the same network address will inevitably crash the connection. Assign static IP addresses to your dedicated modules. You must also address sudden bandwidth drops or frustrating "device not found" errors. These usually point to channel congestion. Someone might have powered on a disruptive piece of machinery nearby. Check your line of sight immediately. Ensure no metal barriers obstruct the signal path.

Ensure your captured data remains strictly confidential. This geometric data often contains highly proprietary CAD models and sensitive intellectual property. Never expose it over unsecured public guest networks. Implement strict best practices for local-only transmission. Utilize standard IEEE 802.1X network authentication protocols. Enable robust encryption standards on your router. Treat this hardware exactly like a secure corporate laptop.

Do not ignore routine system updates. Firmware maintenance remains an absolute necessity. You must systematically patch both the core hardware and the transmission module. These updates routinely patch newly discovered connectivity vulnerabilities. They also optimize radio frequency performance and improve battery efficiency. Schedule monthly maintenance windows to apply these critical patches.

Conclusion

Setting up a mobile data capture environment is rarely a simple plug-and-play affair. It is fundamentally about establishing a stable, interference-free data pipeline. You must prioritize environmental preparation over immediate hardware activation. A methodical approach ensures long-term operational success.

If you are evaluating new hardware, prioritize vendors offering dedicated transmission modules. Skip generic, off-the-shelf adapters. Dedicated processing units ensure enterprise-grade reliability and protect your data integrity.

Here are your immediate next steps:

• Audit your current factory network for 5GHz channel availability and bandwidth capacity.

• Download the official technical specification sheets for your targeted hardware to confirm software compatibility.

• Request a pilot demonstration to test actual transmission latency in your specific operational environment.

• Draft a preliminary SOP focusing on battery management and secure pairing protocols.

FAQ

Q: Will the computer automatically detect incoming pages/data from a wireless scanner?

A: Standard document scanners often use basic push-to-email or auto-detect features. However, industrial 3D systems function quite differently. They require an active, continuous software handshake. The host computer and the hardware must maintain a synchronized connection to handle real-time rendering environments. You must manually initiate this secure pairing sequence within your specific software before any data transmission begins.

Q: Does a Wireless Scanning Module reduce scan accuracy compared to a tethered connection?

A: No. The volumetric accuracy and point resolution remain absolutely identical to a tethered setup. The primary variable in a wireless deployment is transmission speed, not data precision. Any potential latency is successfully mitigated through proper local network configuration. Edge-computing modules buffer and compress the point cloud data perfectly without altering the geometry.

Q: Can multiple portable 3D scanners operate on the same wireless network?

A: Yes, but you must carefully manage bandwidth saturation. Operating multiple devices requires isolated network channels to prevent severe signal interference. Most enterprise-grade modules utilize strict 1-to-1 pairing rules. You must assign discrete static IPs and separate 5GHz channels to each device pair. This ensures uninterrupted, simultaneous operation on the same shop floor.
